Fine Pole Electro-Permanent Magnetic Chuck(EPF Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Range of Application:
● Suitable to grinding work and thin workpiece

● Min.thickness of workpiece:5-8mm

● Min.dimension of workpiece :45mmx45mm

● Nominal holding force:110N/cm²

● Electro-Permanent magnetic chucks is the main accessory of horizontal grinder, which is very suitable for fixing workpiece on grinder.
Availability:

Product Description

Feathers:

Variable power makes it possible to adjust the magnetic force.

No thermal deformation improves accuracy of high precision

Immediately becomes magnetic when it is energized

Electro-permanent magnetic chuck can be easily fixed to the surface grinder.

Multiple chucks can be operated simultaneously by a single controller

Special chucks can be designed and manufactured according to requirements

Pole pitch of 2mm(1.5+0.5) can be made at extra cost.

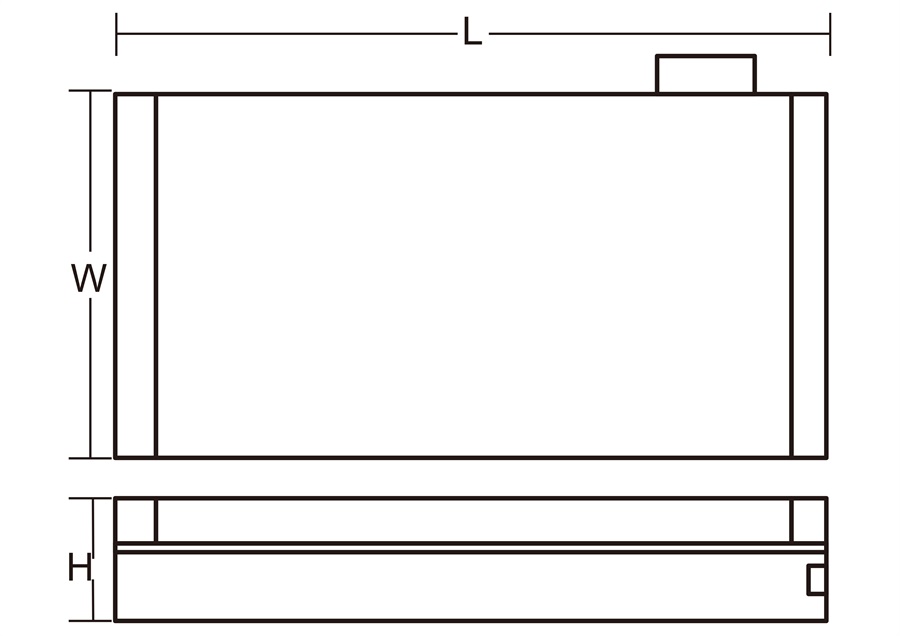

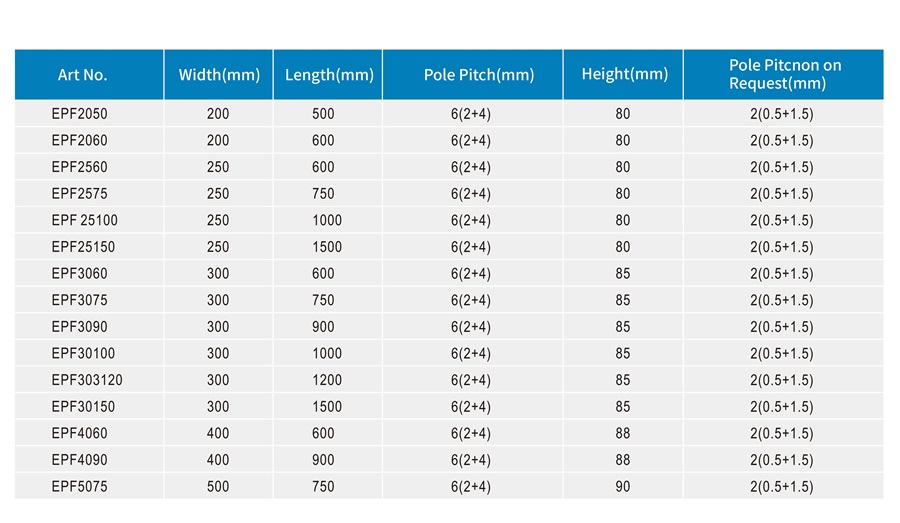

EPF Series (2)EPF Series (4)

Other size on request
