Micro Fine Pole Permanent Magnetic Chuck(PMS M Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Description:
●  Transverse pole pitch 4mm,1mm brass/3mm steel.Ndfeb magnet provide powerful gripping force

●  Conventional holding force: 120N/cm² (JIS)

●  Magnetic field penetration:8mm

●  Pole plate wearing limit:5mm
Availability:

Product Description

Application:

1.Best suitable for grinding and EDM application.

2.Used for small, medium workpieces, best for thinner workpieces.


Feather:

1.The magnetic field is without any stray fields, preventing magnetization of the tool.

2.Exceptionally strong neodymium magnetic system.

3.The switch is controlled by a handle, and the workpiece can be easily removed in the closed position

4.The chucks are equipped with longitudinal and transverse stopper.

5.Parallelism,flatness and squareness 0.005mm/100mm

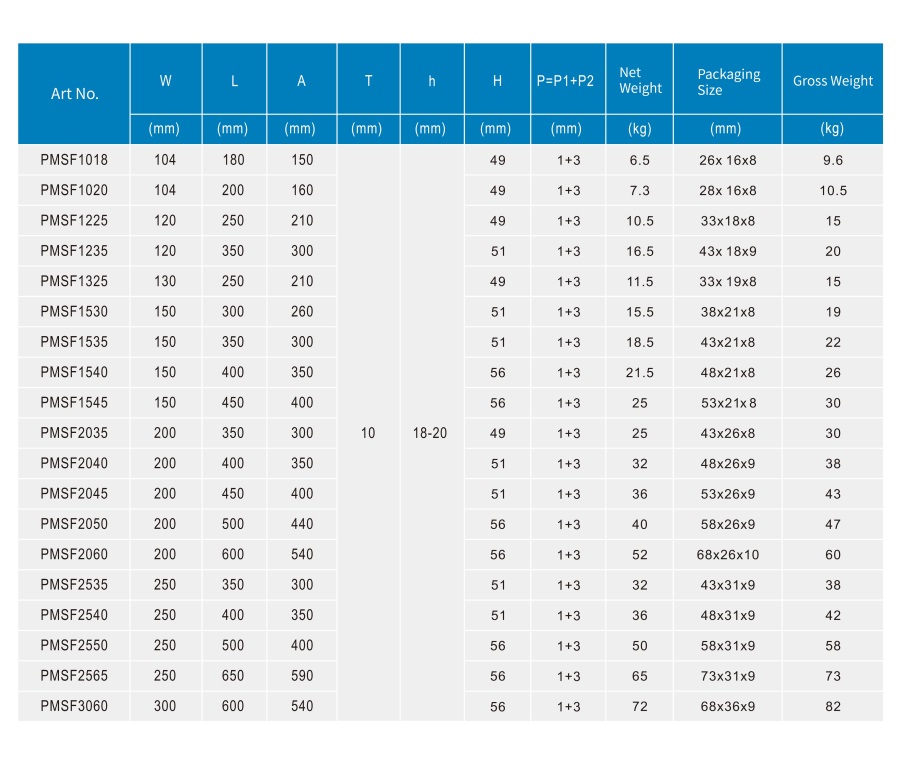

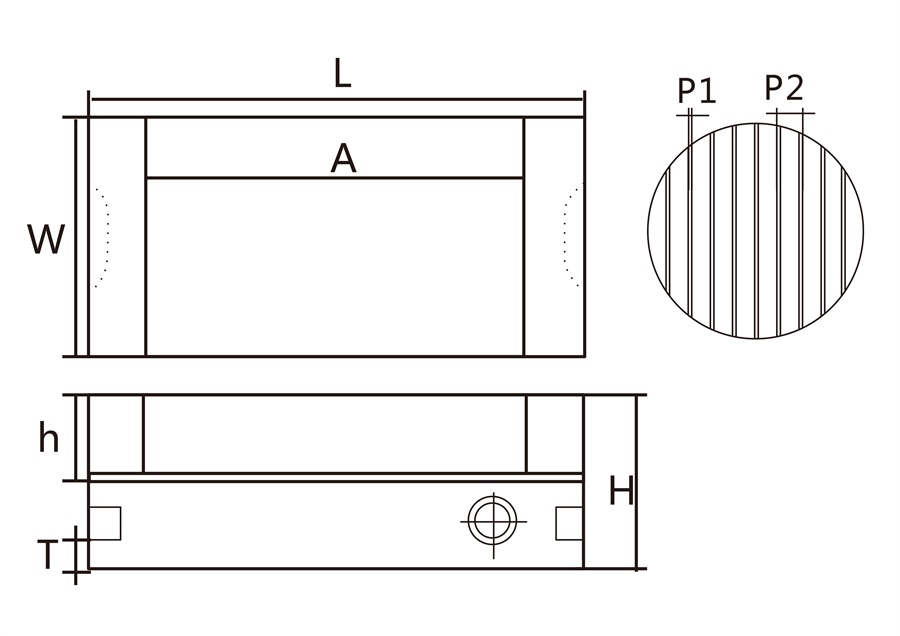

PMS M Series (2)PMS M Series (3)
